Recirculation Pumps and Manifold Systems for Nashville Investor Properties

Recirculation pumps and manifold systems are two of the most misunderstood plumbing upgrades in Nashville investment properties. They sound similar because both get discussed during repipes and water heater replacements. They solve different problems.

A recirculation pump reduces hot-water wait time. A manifold system gives individual fixture control. One improves comfort and water waste. The other reduces maintenance disruption and makes future repairs cleaner.

For a house flipper, the question is resale value. For a rental owner, the question is maintenance cost and tenant calls. For a BRRRR investor, the question is whether the upgrade improves appraisal, financing, or operations enough to justify installing it during rehab.

What a Recirculation Pump Actually Does

A hot-water recirculation system moves hot water through the plumbing loop so the far bathroom does not wait 60-120 seconds for hot water. In larger Nashville homes, especially two-story Brentwood, Franklin, and Green Hills properties, that comfort difference is noticeable.

There are two common types:

- Dedicated return line system: best during a full repipe or gut renovation

Retrofit crossover system: lower cost, uses existing hot/cold lines and a valve under a fixture

Dedicated return is cleaner and more efficient. Retrofit is cheaper and works when walls are already closed.

What a Manifold System Actually Does

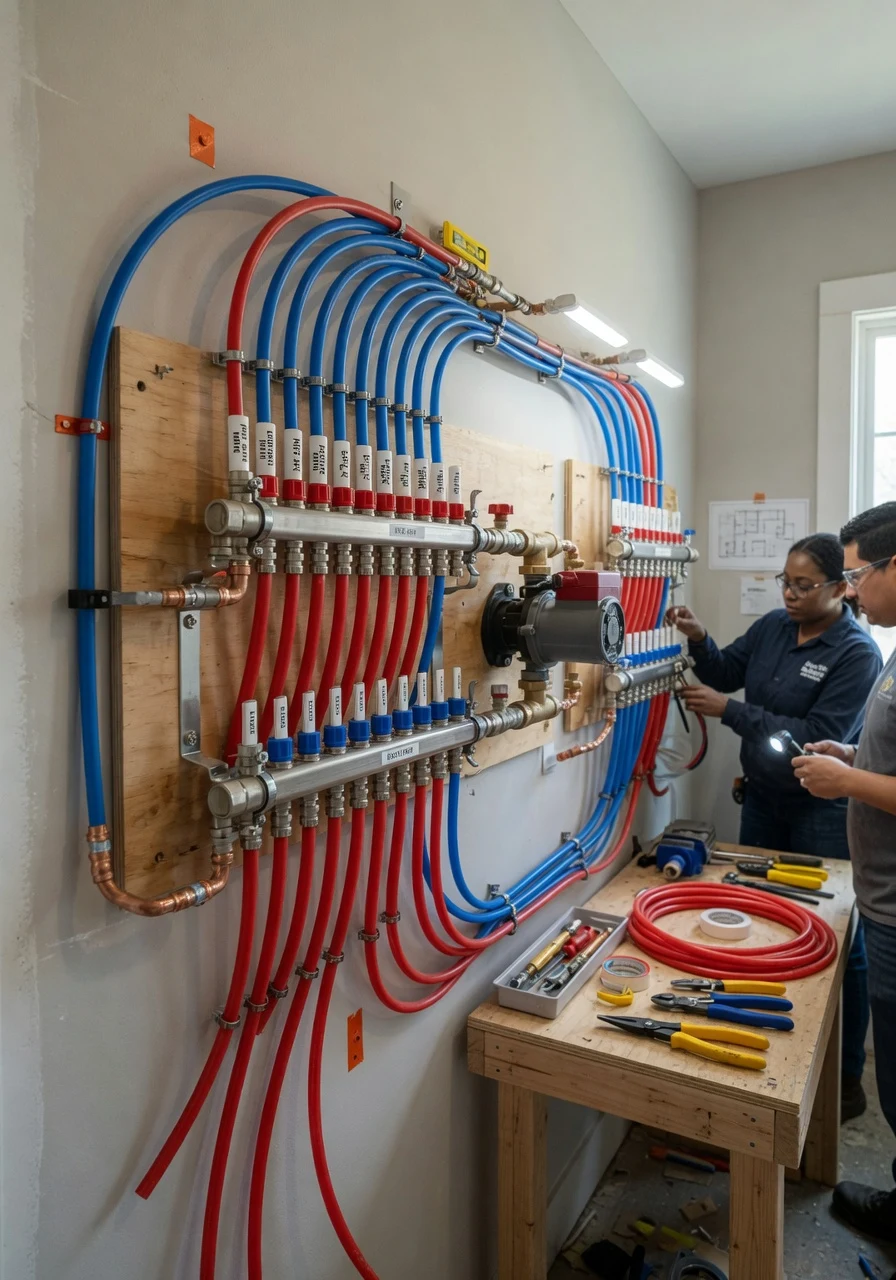

A PEX manifold is a central distribution point with individual shutoffs for each fixture. Instead of one branch line feeding half the house, every fixture or fixture group gets its own controlled run.

For rentals, this matters. If a tenant reports a leaking toilet supply in Madison, a property manager can shut off that toilet instead of killing water to the whole house. If a kitchen faucet cartridge fails in East Nashville, the repair can be isolated.

Manifolds also make future troubleshooting faster because the system is labeled.

2026 Nashville Cost Table

Upgrade | Typical installed cost | Best timing | Best property type

|---|---:|---|---| Basic PEX manifold during repipe | $350-$900 add-on | Full PEX-A repipe | Rentals and flips Premium labeled manifold cabinet | $900-$1,800 | Higher-end renovation | Owner-occupant flip Retrofit recirc pump | $650-$1,500 | Existing finished home | Long hot-water waits Dedicated recirc return line | $1,500-$3,500 | Gut rehab or repipe | Large homes Smart/timer recirc control | $250-$700 add-on | Water heater install | High-end homes Tankless with built-in recirc | $3,200-$5,800 total | Water heater replacement | Premium ARV

The important phrase is add-on. Installing a manifold during a repipe is cheap. Installing one after drywall is finished is not.

When Recirculation Pumps Pencil Out

Recirculation pumps make the most sense when the water heater is far from the primary bath or kitchen.

Strong candidates:

- Franklin two-story homes with a garage water heater and upstairs primary suite

Brentwood houses with long ranch layouts

Green Hills renovations with luxury primary suites

East Nashville additions where the new bath is far from the original utility area

Larger STR-style properties where guest comfort matters

Weak candidates:

- Small Antioch slab homes with short plumbing runs

Madison rentals where tenant utility behavior is unpredictable

Any property with unresolved pressure or water heater sizing problems

Recirc does not fix an undersized water heater. It only moves hot water faster.

Energy and Water Tradeoff

The sales pitch says a recirc pump saves water. That can be true, but it can also waste energy if installed poorly.

If the pump runs constantly, the hot-water line acts like a long radiator. You lose heat into crawlspaces, walls, and slab chases. In Nashville winter, that loss may be hidden by heating demand. In summer, it is just wasted energy.

Use controls:

1. Timer control for morning and evening use.

2. Aquastat control so the pump stops once temperature is reached. 3. Demand button or motion control in premium properties. 4. Pipe insulation on accessible hot-water runs.

For rentals, I prefer timer plus aquastat. It is simple enough for tenants and reduces waste.

When Manifolds Pencil Out

Manifolds are almost always worth considering during a full PEX-A repipe.

In Nashville investor properties, the biggest value is not buyer excitement. It is future access.

#

Rental Example

A Rutherford County rental has a leaking upstairs toilet supply. Without a manifold, the tenant shuts off the main, the whole house loses water, and the call escalates. With a labeled manifold, the property manager isolates "Bath 2 toilet" and schedules a normal-hours repair.

That can be the difference between a $225 scheduled repair and a $475 after-hours call.

#

Flip Example

A buyer inspector in East Nashville sees a clean PEX-A manifold, labeled shutoffs, new PRV, and new water heater. That creates confidence. It does not always increase appraised value, but it can reduce inspection retrades.

Manifold Design Rules

Bad manifolds create clutter. Good manifolds create control.

Require:

- Clear labels for every run

Accessible location, not buried behind storage

Main shutoff before the manifold

Isolation valves that can actually be operated

No unsupported PEX spaghetti

Pressure-tested documentation before drywall

If the mechanical room looks sloppy, the upgrade loses much of its value.

Nashville Construction Type Matters

Crawlspace homes in East Nashville and Madison are easier for manifold runs because pipe routing is accessible. Slab homes in Antioch are harder because new home-run lines often need wall and attic routing. Two-story Franklin and Brentwood homes require better planning because vertical runs can multiply drywall patches.

Construction type | Manifold difficulty | Recirc difficulty | Investor note

|---|---|---|---| Crawlspace bungalow | Low | Low to medium | Best value timing Slab ranch | Medium | Medium | Plan wall routes early Two-story suburban | Medium to high | Medium | Good comfort ROI Historic pre-war | High | Medium | Access drives price Full gut renovation | Low | Low | Best time to install both

The Water Heater Connection

Recirculation and tankless water heaters need to be planned together. Many modern tankless units can support recirc, but the gas line, venting, pump controls, and return line must be designed as one system.

Do not let a tankless installer add recirc as an afterthought. If the unit short-cycles or the return line is wrong, the buyer inherits noise, energy waste, and maintenance problems.

What I Recommend by Strategy

For flips under $400K ARV, skip recirc unless the hot-water wait is obvious. Add a basic manifold only if you are already repiping.

For $400K-$700K owner-occupant flips, consider a manifold during repipe and recirc only when layout demands it.

For Brentwood, Green Hills, and Franklin premium flips, a clean tankless-recirc-manifold package can support the overall finish level.

For rentals, manifolds usually beat recirc. Control reduces maintenance pain. Comfort upgrades only matter if they do not add owner maintenance.

Bottom Line

Recirculation pumps are comfort upgrades. Manifold systems are control upgrades. Nashville investors should not treat them as automatic line items, but they are smart when installed at the right time.

If you are already opening walls, replacing polybutylene, or running PEX-A, ask about a manifold. If the primary bath is a long run from the water heater, price recirc before drywall. The cheap time to decide is during rough-in, not after finish work.
